Weekend Reverse-Engineer: Passive DisplayPort Adapter

Displayport adapter dongles are ubiquitous, now that DisplayPort is becoming more and more prevalent in desktop video cards.  I probably have at least a half-dozen of them, connected to machines or stuck in junk drawers.  You plug them in, and they work.  Simple.

Last week at work, we had a discussion about implementing DisplayPort to DVI conversion in one of our products.  I suggested that the conversion might be quite simple – I mean, there exist “passive” DisplayPort to DVI dongles and “active” DisplayPort to DVI dongles.  Surely the “active” ones do something to the signal, but “passive” means no active components, right? …right?

Well, it turns out I couldn’t be more wrong.  After a reality check by a fellow engineer and a little bit of destructive evaluation, I have now been reeducated in the inner workings of DisplayPort to X conversion.  I’ve decided to post my mistake here, in hope that it saves someone else the embarrassment of looking dumb to their coworkers.

“Passive”.  This basic word has a particular meaning in the context of electronics.  Wikipedia notes that passive components “can’t introduce net energy into the circuit. They also can’t rely on a source of power, except for what is available from the (AC) circuit they are connected to.”  This is in opposition to “Active” components, which “rely on a source of energy (usually from the DC circuit [...]) and usually can inject power into a circuit”.  Semiconductors are always classified as Active devices; resistors and capacitors are Passive components.

So what is the junior engineer to expect when he sees a device which comes in both “active” and “passive” flavors?  Naturally I assumed that the passive adapters were more-or-less a passthrough connector swap.  I was well aware of Dual Mode DisplayPort (or DP++), and assumed that the electrical conversion was taken care of on the video card.  Even the Wikipedia article is somewhat vague on what actually goes on inside a passive adapter, stating the port “can directly output single-link HDMI and DVI signals using a simple passive adapter that adjusts from the different connector and the lower voltages used by DisplayPort.”  Different connector, sure, that makes sense.  But the lower voltage part, what to make of that?

Let’s back up a bit and look at the DVI and DisplayPort signaling specifications.  Per DVI Specification 1.0, DVI is a ground-referenced differential transmission system.  DVI transmitters work on a rail voltage of 3.3V with respect to ground, with logic “High” corresponding to 3.3V, and logic “Low” corresponding to between Vhigh-0.6V to Vhigh-0.4V – or 2.7 to 2.9 V (page 35-36 of spec).  While the (+) and (-) components of each differential pair carry opposite logic levels to one another, they are both DC biased to a couple volts above ground.

DisplayPort, on the other hand, is AC-coupled from the source.  Although its signal swing is also around 0.4V, it has no DC offset (e.g. it is centered on 0V, instead of DVI’s ~3V).  This is typically accomplished using series capacitors on the video card.

It should be clear that an AC-coupled 400mVPP signal cannot be converted to a DC-coupled 400-600mVPP signal riding on a 2.9V offset without something intervening in the middle.  Thus, even for a “passive” adapter, active circuitry is required to handle the level-shift.



A passive DisplayPort to DVI adapter, with its casing and potting removed.  I've removed and re-installed components for testing prior to taking this photo.

A passive DisplayPort to DVI adapter, with its casing and potting removed. I’ve removed and re-installed some components for testing prior to taking this photo.

To investigate exactly how the conversion is done, I took a knife to a commercial passive DisplayPort to DVI adapter.  Inside the casing was the board seen above.  As you can see, most of the conversion appears to be handled by a single large IC.  In fact, this is the case with most (all?) adapters of this kind.  When DP++ was released, many of the major silicon manufacturers realized there would be a healthy market for single-chip DisplayPort-to-x level shifter solutions; as such, there are parts that perform this function from TI, Maxim, NXP, and many others.  This unit happens to use a Pericom PI3VDP411LS.  The competition and the high volumes of these parts have had a favorable effect on the price; the ’411 can be had from several distributors for less than $1.50 in qty 1.

The rest of the components are primarily support components for the main level shifter IC.  There is a 10A45 charge pump to generate 5V for the attached monitor (per DVI spec) from the 3.3V available from the DisplayPort, and there is a 2N3904 transistor to switch the level shifter on when a signal is received on the HPD pin.  The rest are passives, mostly resistors and capacitors and one or two ferrite beads or little inductors for noise suppression.  I’ve transcribed the design into a schematic, which you can download here:

It’s missing a few values, mainly because I was too lazy to pull all the components off the board to measure them and I couldn’t satisfactorily do it in-circuit.  Most of the unmarked capacitors are going to be 0.1uF or 0.01uF decoupling capacitors for the level shifter.

So then, you ask, if all adapters require active components, just what the heck do Active adapters do different?  Well, inquisitive reader, that’s a simple answer, but it requires a bit more background information.  DVI, as a much older standard, transmits data in a much simpler way than DisplayPort.  Single-link DVI has three data pairs and a clock pair.  Each of the data pairs transmits the information of one color – red, green or blue.  In general (excepting when HDCP is enabled), this data is sent in more-or-less raw form, in an 8b/10b transition minimized differential signaling (TMDS) data stream.  Using simple rules to reverse the 8b/10b encoding, this can be translated directly into raw 8-bit color values.  Single-link DVI runs at a maximum clock rate of 165MHz, with one 8-bit pixel color transmitted on each pair per clock.  This makes the maximum throughput of single-link DVI 3.96Gbps (165M*8*3).  (Dual-link DVI raises the clock rate and doubles the number of pairs for greatly increased bandwidth)

DisplayPort, on the other hand, takes a lot of cues from the more contemporary PCI Express.  Similar to PCIe, DP can be transported on a variable number of lanes, either 1, 2 or 4 (although unlike PCIe, it has no dedicated clock pair).  The data is transmitted in packets, which may contain pixel data but also can carry audio stream data or other types of information.  Packets are addressable, which enables the daisy-chaining of devices – each one only listening to packets intended for itself.  Any lane may and does carry all types of data, as the packets are assigned sequentially to the lanes.  The data is still 8b/10b encoded, but is no longer TMDS.  It runs at 1.6 to 5.4 Gbps per lane, with real data throughput of 1.3 to 4.3Gbps per lane; across a 4-lane link, this equates to an aggregate throughput of over 17Gbps.

Clearly the two standards are very different, and normally quite incompatible.  In a world with millions of DVI devices, and with competitor HDMI offering backward-compatibility with these devices, DisplayPort would be dead in the water without a simple, inexpensive way to support legacy displays.  To address this, VESA (DisplayPort’s standards organization) added “Dual-Mode” operation to the specification, which allow the video device to output DVI-compatible raw pixel data over three of its DP lanes, and a clock signal on the other.  Add a simple level-shifter to offset the data and drive it appropriately, and you have a very convincing DVI output.  This is the Passive adapter.

An active adapter, on the other hand, does not need the video card to output a special signal.  It takes in native DisplayPort and converts the data itself, outputting a completely different signal on the other end.  Internally, it receives and decodes the DisplayPort packets, reconstructing the video signal in a format usable by the sink device.

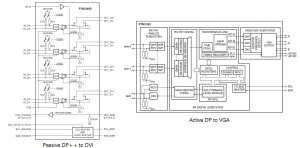

The diagram of a passive DP++ to DVI converter, compared to that of an active DP to VGA converter.  An active DP to DVI converter would look the same but would have a TMDS encoder block in place of the VGA DACs.

The diagram of a passive DP++ to DVI converter, compared to that of an active DP to VGA converter. An active DP to DVI converter would look similar but would have a TMDS encoder block in place of the VGA DACs, and it may have more input lanes.

This distinction leads to a couple of trends.  First, active adapters tend to be more expensive than passive adapters.  This is a simple result of the difference in complexity between the two (see the above comparison of internal structure).  Second, due to the limited number of lanes in DisplayPort and the data capable of being carried over them, it is only possible to make ‘single-link’ DVI/HDMI dongles in passive form – dual-link dongles, or those with any other video format as an output (e.g. VGA) are necessarily active.  It also sheds light on an oft-lamented problem with passive adapters – that there is generally a limit of two per GPU.  Usually the reason given is ‘because there are only two clock generators on the card’.  Knowing now that in DP++ mode the card must generate a stable clock pair for each DVI output it is driving, this limitation makes more sense (although why more clock generators are not included is still not clear to me, nor why the otherwise reconfigurable outputs can’t be configured to output a clock at one tenth the pixel clock rate…)

I don’t have an active converter to tear down as well to show the difference, but suffice it to say that the internals will look similar but operate quite differently.  These are low-cost devices and typically have a high degree of integration, so they’ll still usually be realized with one main IC.  As the diagram above shows, though, the internals work in very different ways.

So there you have it.  Passive DisplayPort dongles contain active circuitry, but don’t do anything to the signal other than level-shift it.  Active DisplayPort dongles contain different active circuitry which decodes the signal and constructs a new signal on the output.  Remember that, and don’t look stupid in conversation like I did!

New project: Slightly-Less-Simple Retina LCD Adapter

As many have noticed, I’ve stopped offering my Simple iPad LCD Adapter for sale.  The reason I’ve given is that I am working on an improved version of the board.  Well, as of today I’ve gotten far enough on the design that I’d like to share it.

The new Simple Retina LCD Adapter, work-in-progress.

The new Simple Retina LCD Adapter, work-in-progress.

The most drastic change for this design is the integration of buck and boost power supplies to drive the panel and backlight respectively.  I was not happy with telling people they’d need to provide their own regulated power – the panel isn’t THAT sensitive to voltage wobble, but it can be a problem with particularly long power leads, despite the large hold-up capacitor.  Now the board should be able to take between 5 and 18 volts and spit out well-regulated rails.

Several other things have changed as well.  I’ve changed the full-size DisplayPort connector to a miniDP connector, because for as small as the board is, the full-size connector was a waste of space.  I’ve added a proper connector for power – while handing out boards with bare wires soldered on was functionally workable, it’s not exactly as clean a solution as I prefer.  There is no longer a diode OR between external and DisplayPort power, because cables that carry DP_PWR are so uncommon that it is unnecessary.  And there’s a fuse, to limit catastrophic failure in the event of a solder bridge or improper installation.

Now, the added components will increase BOM cost – I’m not sure by how much, but I know it will.  However, I have designed in jumpers that will allow users who still want to feed in their own 3.3V and who don’t need a backlight supply to use this board in the same way as the old one.  Hopefully this will make the design more accessible to people who want a more compact, all in one design without alienating those who like it how it was.

The design is a day or two from completion.  As per typical, I’ll be building a board up and debugging it before I release the design documents, so that I don’t release something that won’t work.  So keep an eye out in the coming weeks.

Miscellaneous updates, 2013-12-04

Oops!  I told myself I would update this site at least once a month.  As you can easily see, I haven’t quite kept up with that desire.  Things have picked up in my professional life and I have not had nearly as much time lately to tinker with this stuff.  But here’s what’s going on.

  • iPad simple interface:  Currently out of stock.  I’ve sold all of my first-run boards and have not ordered more.  Sources for some of the components used have dried up, and I may need to change the board to accomodate replacements.  Additionally, based on the results of the Macbook board, I might want to add some small power supplies to the board to alleviate the need to provide two precisely regulated rails.  There is currently no ETA on this.
  • Macbook board:  Hasn’t been touched since the previous post.  Lack of time, unfortunately.
  • iPad digitizer research:  Starting up again.  The next “real” post may well be on this topic.
  • Other in-progress projects:  No further progress.
  • Metalworking:  I am now the proud owner of a Precision Matthews PM-932M mill/drill machine, so one of these days I’m planning a new series on making metal widgets.  Stay tuned for that.

Also please note:  The server on which this site resides is due for major hardware changes in the next week or two.  Expect downtime of up to a day or two while new hardware is installed and configured.  I suspect I’ll be too lazy to put up a “down for maintenance” message, so this will be the only warning.  Don’t worry, unless there’s some major hardware issue the site will be back soon.  [Edit: Complete.]

So that’s where I’m at.  No real news to pass, but it’s high time I posted “something” so folks don’t think this site is abandoned.  Hopefully the new year will bring more time to work on some of these in-progress half-finished projects.  We’ll see.

Hacking the Macbook Pro Retina LCD, Part 4: First PCB Tests

Welcome back!  It’s been more than a month and a half since my last post on the Macbook Pro Retina panel – damn my “real job” and the time it consumes.  But we’re here now, so let’s dive into things.

In the previous two posts on this subject, I have talked about two boards that I have been developing for the 15.4″ Macbook Pro Retina display assembly: a breakout for the FaceTime camera, and the main display controller / backlight driver board.  Well, in the month-and-a-half that has elapsed, both boards have been received and built.  Let’s start by taking a look at the former.

Camera Breakout

When I went to order these boards, I did so immediately after the cutoff for the current OSH Park 4 layer order, so the estimated delivery time was three or four weeks.  Unhappy and impatient, I held off and instead ordered the board as 2-layer for more instant gratification.  The two inner layers are only GND, so this is possible without too much trouble.  It throws off the impedance of the USB traces probably significantly, but as the entire trace length is a half inch or so, I figured it’d be close enough for at least temporary use.

So the boards arrived a week and a half later.  I immediately noticed something interesting and bothersome.  Board fab houses typically require a gap between the edge of any copper and the routed board edge.  If you are making a small board and including mounting pads for screws, the pads may consume a large percentage of the total board area – in fact, the pads may well drive the overall dimensions of the board, and larger dimensions mean greater board cost.  I wanted this board to screw mount, but even the 2-56 screws I designed for needed quite significant pads.  I decided it would be nice to trim the amount of room wasted on mount pads by clipping the pads at the board edge, allowing the screw to extend into the no-copper area at the edges of the board – it really only drops a few cents from the board in this case, but it makes me feel better.

So in Altium Designer, I made a small Pad on Multilayer (the magic layer which is copied to all other layers), then made a Polygon in the shape of a circle with a flat edge and also placed this on Multilayer.  In theory, this should have resulted in a round pad with a flat edge, drilled and plated through as expected – in fact, the 3D render of the board shows this:

For a sense of scale, remember that that's a miniUSB...

Mount pads look OK here.

But what arrived from the fab was this:

There aren't supposed to be voids in those mount pads...

There aren’t supposed to be voids in those mount pads…

When I poured the rest of the GND polygon, apparently Altium attempted to connect to the inner Pad, and generated Polygon Cutouts surrounding it, which happened also to cut the Multilayer polygon.  It didn’t show in the PCB editor, although it did in the Gerbers – but I was in too much of a hurry when ordering to notice.  Oops.  But so be it, it’s only the mount pads.

I then assembled the board, and with bated breath, plugged it into a USB port.  And Hooray!  The Device Connected sound sounded, and the camera showed up in device manager.  But, strangely, the power LED was orange.  I specified a green LED, I thought I placed a green LED, but it was bright orange.  I checked the package to be sure but it was correct.  It was then that I discovered a tiny short, and simultaneously learned that if you apply 5V directly across a 2.1V green LED, it becomes an orange LED.  Neato!  It also gets real real hot.  But miraculously, after I corrected the short, which had caused the full USB voltage to appear across the LED, it returned to green and operated as normal.  So I guess I can say, these OSRAM CHIPLED parts seem to be pretty hardy!  I unfortunately don’t have any photos, but these parts are cheap, so buy some and experiment for yourself.  Science!

After a few days the 4 layer board order deadline had arrived again, so (having not discovered nor corrected the pad issue) I re-ordered the board as 4-layer, this time adding a second transient suppressor for the ALS connector… because why not, and you can always short it with jumper wires if you don’t want to use it.  So here’s what that looks like (note that I have fixed the pad issue at this point):

Yep.

Yep.

I haven’t bothered to build this one yet, but it hasn’t changed significantly since the 2-layer version, so I suspect it’ll work fine.  The files for this board can be downloaded here:

Enjoy!

Main Controller Board

Now, the information you’ve all been waiting for.  As I said on the previous post on this subject, I quickly threw together this board to get it in before the following OSH Park cutoff.  As such it’s not perfect, but it is fairly functional (or so it seems from the minimal amount of testing I’ve done so far).

There’s a lot of new stuff going on on this board, as compared to my iPad board (on which this one is loosely based).  Of course the panel output connector is different, because the panel is different.  Also, though, the barrel jack has been removed, and a 2-pin shrouded connector has been added in its place.  Barrel jacks, I finally came to realize, are just too damn big and expensive for a little cheap board like this.  The new solution is less than a dollar in single quantities for plug, receptacle and terminals, whereas the board mount barrel receptacle was more than a dollar by itself, not counting wire mount plug.  Plus the barrel jack tended to be the tallest component on the board, driving enclosure dimensions.  It takes a bit more work to implement, but I still think this was a good change.

The dc-dc converters are new as well.  The board contains two dc-dc buck regulators, both based on the AOZ1281 from Alpha & Omega Semiconductor.  This part was chosen due to very low cost – about $0.90 in single quantities – as well as ample output current (1.8A) and acceptable input voltage range (3-26V).  The board implements this part as one 3.3V/500mA converter and one 3.8V/1A converter, the former for processor, indicators and other functions, and the latter for the panel itself, which was investigated and found to run well on 3.8V in a prior post.  It’s probably a 5V panel, in retrospect, and I may someday become ambitious enough to test it at this higher voltage, but for now 3.8V works.

The board shares the same Freescale MKL25Z128VFM4 processor as the iPad board, again due to cost to performance ratio of the $3 ARM Cortex-M0+ core.  Sure, I could drop $0.50 and put in a MSP430, but I like the potential for other functions that the more powerful processor enables.  I still need to learn how to program the damn things, but I digress.  The other big IC on the board, the backlight driver, has completely changed compared to the iPad version.  Whereas the iPad panel has 12 backlight channels at 20V apiece, the Macbook has only six channels but at some 52V.  The LT3754 used on the iPad board only does 45V, so a new backlight driver is needed.  Of the (relatively few) integrated boost converter / LED driver ICs, the best choice for this application seemed to be the Freescale MC34844A, which happily will push out 60V with appropriate configuration.

In the interest of keeping this post from being more than fifteen or twenty pages, I’ll leave the rest of the description to the schematic, but if anything is unclear please feel free to drop me a comment or email.

Again, this board uses 2-56 mounting screws, and again, I opted to include clipped pads.  And again the boards showed up with voids in the pads.  But this time, inexplicably, some of the pads did not have voids.  They were all created the same way so I can’t quite explain that one yet.  But one thing is for sure, I’ll certainly pay more attention from here on out.  I built the pads for one of my boards at work with clipped edges as well, but this time used top and bottom polygons instead of one multilayer one.  In this way the pads are slightly smaller in the internal layers, but on the other hand the polygons connect without issue, so that’s a small price to pay.

Anyway.  Here’s the (99%) finished board, lacking only a fuse and transient suppression diodes in front of the USB port and DP connector:

Top.  Ignore the soldered-on power wires...

Top. Ignore the soldered-on power wires.

Bottom.

Bottom.

I’m not 100% happy with it – in particular, I suspect that my overzealous attempt to match the lengths of the DisplayPort lanes may have actually had an adverse effect on signal integrity as the traces have to bend a whole lot and come in much closer range of each other than is really recommended.  But I can say that the board works like this, and I can’t keep from releasing something forever because I’m not 100% happy with it (or so my boss always says – “You can always fix it in Rev B”).  So here we are.

Now, the processor has control over panel power and backlight on/off and brightness, so without programming the processor the board won’t do anything.  So, still lacking much experience with the ARM Cortex-M0+ platform, I wrote a very barebones program that simply turns on the power and backlight driver for the panel, and additionally powers up the PWM controllers for the offboard indicator LED.  So here’s the board documents, and the source to at least power-on the necessary systems:

Holy cow, I just realized I never released the documents for the indicator/button board either!  Well, let’s go ahead and do that now too.  Here’s what it looks like:

Pretty simple.

Pretty simple.

This board is designed to be double-stick taped directly to the back of a panel at an edge of your choosing (my preference is bottom-right) and connected to the main board via a wire harness.  Some of the other controller boards out there with buttons onboard have very awkward button placement, so this is a slightly more expensive but much more elegant solution.  The files for this board are attached here:

Whew.  This has been a grueling post to prepare.  Enough for now.  Er, except for one last picture!

Woohoo!

Woohoo!

<< Previous post in this series

Miscellaneous updates, 2013-08-27

It’s been quite a long while since I’ve posted anything, so I just wanted to put something up to reaffirm that I’m still here :)

It has been a busy few weeks for me in the world  outside my workbench, so progress has been slow on the active projects.  Here’s an overview of what’s going on:

  • Macbook “full-featured” controller board:  Boards hare arrived, waiting on component delivery (due Thursday).  This will include demos of some new and lower-cost components which will eventually make their way into other boards.
  • iPad “full-featured” controller board:  On hold pending redesign for cost reduction and results of Macbook hardware evaluation (as much of the hardware is shared).  Will leapfrog the Macbook and iPad boards until I am satisfied with how they work.  Also am working on the software for this board.  I’m really trying to get a USB firmware update utility built, but I’m new to the Kinetis platform so I’m having some trouble.  Has anyone out there built a DFU loader for a KL25 that can share some pointers? :)
  • Macbook camera board:  I ordered a 2-layer version (inner layers are all GND) some weeks ago to test, and that worked fine.  Now the proper 4-layer boards are in and I need to build one of those up.  But I’m satisfied with the design in general so I should be releasing those documents as soon as I get the ambition.
  • iPad touch panel:  Oof… haven’t touched that one for a while.  Need more free time…
  • Reflow oven:  I found some proper convection-type ovens at the local Wal-Mart for around $40 which will save me plenty of work in installing my own stir fan, so I may well be starting over.  For now I’m getting too comfortable running the boards freehand with a temperature probe though…
  • LP173WF2: Working on an interface board to take advantage of the connector hack I implemented.  In progress, no ETA

So that’s that.  Not much to show at the moment.  But hopefully that’ll change this weekend when I get some work done on the Macbook boards.

Plus!  I just this weekend got my new milling machine up and running!  So expect some metalworking projects to start showing up from time to time.

That’s all for now.

[EDIT 9/9/13] Hey, progress!

Good ol' high-definition Futurama.

Good ol’ 2880×1800 Futurama.

The Macbook board mostly works!  Backlight driver is putting out on the low side of its designed voltage and the firmware is only complete enough to force everything on, but other than that, it seems to run pretty OK.  Full post on this hopefully tomorrow.

Hacking the Macbook Pro Retina LCD, Part 3: First Working Demo

After screwing up and designing boards around an incorrect connector, and then when the corrected boards came in immediately leaving town for a week on business, I’ve at long last had some time to work on the Macbook panel.  Spoiler alert:  Some progress has been made.

If you don’t recall from previous posts, I threw together a quick board containing only DisplayPort and I-PEX connectors and a bunch of pin headers between them.  The idea is that since we know where the DisplayPort connections are but not the order in which they are arranged, we can solder in jumper wires very easily to test the various lane orderings and polarities without having to otherwise modify the board.  Here’s (the fixed Rev B version of) the board I used to figure out the pinout:

Assembled test board with all wires attached.  I unfortunately don't have a photo of the board prior to installing the wiring.

Assembled test board with all wires attached. I unfortunately don’t have a photo of the board prior to installing the wiring.

There’s nothing special going on here.  At top, connected to the panel, is the I-PEX connector, with its known power and backlight pins hardwired in.  At the bottom is a standard mDP, connected to the host PC.  I connected all the wires I could – power and backlight of course, and AUX+ and AUX-.  From there some engineering is required.

First, we look for Hotplug Detect.  This pin should go logic high shortly after power is applied to the panel.  There are only two pins left on the connector without a defined purpose, 9 and 10.  In testing the panel, it is observed that pin 9 develops 2.8-3V, and pin 10 develops 1.4-1.7V.  The latter is a bit low for HPD, so we will assume that pin 9 is HPD and pin 10 remains unknown for now.

With that pin now connected, we begin testing the DP lanes.  Remember that logically, the lanes should be arranged in one of four orders: 0+/0-..3+/3-, 0-/0+..3-/3+, 3+/3-..0+/0-, or 3-/3+..0-/0+.  I started with the first ordering listed.  Interestingly, the display showed a half-inch of garbled blue blocks at the top and gray bands down the rest of the surface, but the display announced itself to the PC properly and I was able to set its properties.  More boggling yet was that when I reversed the polarity of each of the four pairs, I got a different garbled top area (this time more like static) and the same gray bands, but equal operation with the PC.  I had always assumed that the incorrect polarity would result in a completely inoperable display – interesting.  But not yet correct.  I tried the other two combinations, and neither of those would even bother to talk to the PC beyond sending EDID.

I panicked for a second here, thinking I’d have to try a lot more combinations of pinouts, taking a lot more work.  I tried just connecting one, two or three lanes to see if that made any difference but the PC was unhappy with all of these tests.  Finally I happened to glance at the analog ammeter dial on my bench supply and it was wiggling fairly wildly around the 300mA range.  This didn’t seem right at all, and I immediately began to suspect the power I was applying to the panel (through about three feet of jumper wires to place it close enough to the DisplayPort source on the other side of the room).  When I replaced the original pinout (with the blue blocks) and used about 8″ of hard-soldered wire and a local bench supply, and upped the current limit to about 1A, I was greeted with the following!

It works!

It works!

This just goes to show you how important it is to pay attention to the impedance and voltage drop of your wiring.  Always use as short of wires as possible!  Do note that I only connected one backlight string, which is why the banding is so bad; with the other five strings connected it probably wouldn’t be noticeable.  It looks a little dark because I don’t have proper current limiting installed and I’m driving it cautiously.

So now we know the full pinout of the Macbook Pro 15.4″ panel (or, at least enough of it to get it running.  Here it is, for your design and hacking purposes:

Not sure what Pin 10 is.  Looks kind of like 0.5*HPD

Not sure what Pin 10 is. Looks kind of like 0.5*HPD

Finally knowing the pinout, and running short on time before the next OSH Park 4-layer order, I quickly made up a proof-of-concept controller board for the panel.  The board includes a Freescale MC34844A backlight driver, a Freescale Kinetis MKL25Z128 ARM Cortex-M0+ processor (again chosen for cost to performance ratio), independent switching supplies for the processor and for the panel (which requires a different voltage), mini-USB and mini-DisplayPort connections to the host PC, and a header to match the header on the camera board for the ambient light sensor.  Special care was taken to cut costs on this board wherever possible without compromising functionality – the Linear Technology switcher from the iPad board was scrapped for parts a third of the cost, and some parts were increased in size to avoid paying the premium for the size decrease.  With some difficulty the board was kept to the same compact 1.5×2.5 inch form factor as the full iPad board.

I don't have many of the parts modeled yet.  So sue me, I was in a hurry!

I don’t have many of the parts modeled yet. So sue me, I was in a hurry!

I will release the documents for this board as soon as I build one up and verify that it works – I don’t want anyone ordering a board which might not work.  If you still really want them ahead of time to look at, send me an email.

<< Previous post in this seriesNext post in this series >>

A Compact FullHD 120Hz 3D Display, Part 1: First Looks

Last week I wandered across a thread over at the Overclock.net forums talking about my iPad controller boards.  It would seem there is a growing demand for ultra-high-resolution multi-panel displays amongst the gaming and power user crowd.  The recent releases of high-pixel-density panels in consumer devices means they have become quite accessible to the average hobbyist.

There are a couple of niches that these panels best fill.  For the road warrior, the compact size of the iPad panel might be nice.  For the graphic designer, the Macbook Pro Retina panel offers good performance.  But for the gamer crowd, where high refresh rate is most desirable, neither of these panels quite fits the bill.

As it so happens, boutique PC manufacturer Alienware continues to push the limit (and budget) of the gamer-on-the-go.  Enter the Alienware m17x, a megalaptop with an optional 17.3 inch, 120Hz, full HD 1080p, 3D-capable display.  That’s an awful lot of display, and found in its native habitat the privilege of using it would start at $2000, but thankfully we can find replacement panels in the usual places for about $100.

Now, 1080p doesn’t really hold a candle resolution-wise to some other panels such as the Macbook Pro Retina display at 2880×1800.  But the major advancement here is the 120Hz refresh rate, which promises to offer better gaming performance and less video tearing.  I don’t game much, but I was curious about the combination of features in this panel, so I bought one to play around with.

The panel in all its glory.  Note that I'd already removed the square of conductive shielding cloth before this photo was taken, which is why it is wrinkled.

The panel in all its glory. Note that I’d already removed the square of conductive shielding cloth before this photo was taken, which is why it is wrinkled.

This is the LG LP173WF2(TP)(A1).  We can pull all the necessary specifications from its datasheet (mirrored locally here).  It is driven with 4-lane Embedded DisplayPort, just like the Apple Retina panels.  However, interestingly, this panel is driven with 5 volts, instead of the typical 3.3V.  Further unexpectedly, the panel electronics draw a shocking 2.3 amps (11.5 watts), which does not include the backlight.  I bet the stock 86Whr battery in the m17x doesn’t last very long.

Speaking of the backlight, a notable difference between the Retina panels and this panel is that the LP173WF2 contains onboard backlight drivers, eliminating the need for external drivers.  SImply apply between 7 and 20V, a logic-high Enable signal and a 5-100% duty cycle square wave, and the rest is taken care of.  The backlight claims to draw another 11.6 watts.  Here are some high-resolution shots of the panel’s backlight drivers and controller electronics:
LP173WF2_Controller_1LP173WF2_Controller_2LP173WF2_Controller_3LP173WF2_Controller_4LP173WF2_Controller_5

Just like every new display, this panel has a different set of power and control requirements to all the others.  Thus, a new controller board will be designed to fit the particular needs of this unit.  But we’ll get to that in due time.

First, let’s take a closer look at what we’re working with.  Seemingly similar to every other panel, this one has a unique connector and pinout.  In this case it is a JAE FI-VHP series 50-pin connector, FI-VHP50S-A-HF11, mating connector FI-VHP50CL-A.  This is a problem for a couple of reasons – first, this appears to be a new part which is not currently available at any of the usual distributors, second, even if we could find it, it’s probably beyond the capability of most folks to populate the 0.5mm pitch connector with the very small (32-42AWG), preferably shielded coaxial wires.

So what do we do?  We could order a reel of 3000 pieces direct from JAE for some thousands of dollars, but that’s not a wise investment unless we’re likely to use a couple thousand pieces, and then we still need to assemble the harnesses (and soldering 50 tiny wires on 0.50mm pitch won’t be fun).  We could draw up a specification and order custom harnesses from a supplier, but still unless the quantities are quite high they will probably be more expensive than we’d like.  We could buy used assemblies from the source laptop on eBay, which we can get in single-piece quantities, but these are not very prevalent and are extremely expensive.  Or we could replace the connector with a more widely-used type, which requires us to modify the panel but is comparatively very inexpensive and easy to come by.  I have opted to take this last approach initially, and will reevaluate the other options if demand arises.

Originally I contemplated designing a flex circuit harness to solder directly to the panel and break out into an iPad-style 0.3mm contact pattern.  I still think this would have been a fairly slick solution, but when I attempted to draw it up I found that this contact pattern is not possible for the low-cost prototype houses to produce – the traces are too small and the pads are too close together.  So as a runner-up option I have chosen to replace the existing connector with a 0.5mm ZIF FFC socket, FCI 62684-501100ALF.  By using a standard connector like this we can also use standard FFC cable assemblies, which are very inexpensive and come premade in a variety of lengths.  I bought a 2-inch cable which seems about right.

Original FFC concept.  Ultimately this plan proved too complex for the "budget" flex board suppliers.

Original FFC concept, using my full-feature iPad board as a stand-in for the new board.. Ultimately this plan proved too complex for the “budget” flex board suppliers, and I was unwilling to pay for a “real” board house.

The downside to this approach is that since the VHP-series connectors have a 3-pin-wide break in the middle, the 50-pin connector is actually the width of 53 pins.  Luckily two of the pins on one side are No Connects, but we are still forced to choose between losing pin 1 (“2D/3D Contents Communication”) and pin 48 (DP Lane 3 shield ground).  I have opted to offset the connector to carry the ground connection, and will re-wire pin 1 to one of the three unused pins in the middle of the connector if I get around to it.  Actually if you look at the controller photos it appears as if pin 1 is connected through a non-populated resistor and is thus a no-connect, so I may not bother.

The removal of the existing connector took a surprising amount of effort.  The FI-VHP series has stabilizing legs soldered to the board on the three sides without contacts, so all four sides are soldered down.  This makes removal of the connector, particularly without harming nearby components, quite difficult.  To reduce heat transfer to the heat-sensitive plastic diffuser films, I propped the controller board up off the rear surface of the panel.  I would like to have flipped the controller board over and solder it against a flat surface to avoid stressing solder joints, but the board is held by a small jog in the plastic frame and I felt uneasy putting enough stress on the connecting ribbons to move it.

An embarassing amount of time later, the original connector was removed, losing only one mount pad and the two No Connect pads in the process (probably because my heat was too high):

Connector removed (but pads not yet cleaned), connector modified to clear U4, soldermask removed for side feet.

Connector removed (but pads not yet cleaned), new connector modified to clear U4, soldermask removed for side feet.

Now, to understand my next move, it is important to note my grand plan for this panel.  I’ll illustrate the plan with a 3D model as soon as I have time to draw something up, but for now words will have to suffice.  The panel will need to have a controller PCB attached, to generate the backlight dimming signal and break out the eDP to a more accessible connector.  The various connectors required and the cables attached to them are bound to be heavy, so I don’t want to attach my board to the thin plastic protective sheet over the LCD controller.  I’d much rather stick it directly to the exposed sheet steel chassis.  To achieve this the ribbon cable must point up.  I could either accomplish this by putting a sharp bend in the ribbon cable, or by populating the connector upside-down.  The latter option has the disadvantage of interfering with one of the eDP ESD protection diode arrays, but it provides the benefit of also allowing me to solder down the outer feet to provide strain relief to the tiny solder joints.  This is ultimately the path I chose.

I scraped away some soldermask to make pads for the connector’s feet, and trimmed off the corner of the connector and latch to clear the protection diode.  Then, time to solder the pins.  I had some trouble getting the solder to flow between pin and pad – because the connector “only just” fits behind the diode, there is almost zero exposed pad behind each pin, which means there is no rear solder fillet to span the gap.  Probing the pins with a dental pick after the first pass noted several wiggling pins, on which solder had flowed over and up the pin but not down around it.  I went back and pressed down on each pad while applying a little more solder and that seemed to fix things.  And after more time than I am comfortable admitting to, and on my third connector after ruining two, it was finally done.  Here’s what it looks like now:

Looks pretty good, if you don't look too close.

Looks pretty good, if you don’t look too close.  Don’t let the photo size fool you, those pads are really really tiny.

Ultimately I was unable to reflow it with hot air and unable to solder it with the finest tip I had on my home soldering iron so I had to take it to work and use the professional soldering station there.  I often say that the things I design are difficult to build up, but for some reason – probably due to the delicateness of this assembly – this one was the most difficult soldering job I’ve recently had to do.  I sure hope a source for the correct connector appears, because this was no fun!  Actually, to be fair, after I started using the pro soldering station things went a whole lot better, so maybe if you have good equipment it’s doable.  But it’s certainly no cakewalk.

That’s about all I feel like doing for now.  I now need to spend some time hacking the other end of the ribbon into one of my iPad or Macbook boards in order to apply power to the panel.  As a happy accident, as I noted in an earlier post, I have a set of boards that I designed erroneously to break out a 0.5mm connector which I thought was used in the Macbook, so maybe I can leverage those to get up and running faster.  We’ll see.

Hacking the Macbook Pro Retina LCD, Part 2: The Camera

Something new and interesting.

So, my breakouts for the Macbook Pro Retina’s I-PEX display connector are finished and are on the way from the supplier.  This has been a long ten days.  But it’s not all roses, they’re set to arrive on Monday, the day I start a week of travel for work.  So there will be no fun display hacking time for the next week.  Oh well.

But in the meantime I have turned my attention to the other bundle of cables coming from the display – the antenna and camera connections.  The antennas aren’t all that interesting – we could use them, but they don’t provide a function on their own and the hardware necessary to make use of them would be more complex than it would be worth.  Plus both of my displays have the antenna wires cut.  On the other hand, the camera is a bit more useful.  And like the panel itself, it can be made operable with little more than a connector breakout.

Apple cameras (“iSight”, or more recently “FaceTime”, embedded cameras) have been USB based for a number of generations of MacBook, since at least 2006.  Similar to normal USB, the camera connector traditionally contains 5V, GND, and two USB data lines.  However in addition to this, most Apple camera connectors also carry an i2c interface.  We’ll talk about that a bit more later.

There are plenty of different Apple camera units, a unique one for each model and generation of Macbook.  Over the years they have been built in a number of different form factors, and have been terminated with several different types of connectors.  And within these connectors, the wiring has been arranged in several pinouts.  So while I have some Macbook schematics and know what to expect in general, it is not so easy as applying a “generic” pinout to this unit.

The Macbook Pro Retina display assembly’s camera connector is made by ACON (Advanced Connectek); the part number is currently unknown.  It’s a six-position connector with 0.4mm pitch, likely a solder-type part as the flat contacts appear to be integral to its body.  A bead of epoxy seals the wires into the connector.  Six individual black wires run from the connector to the camera.  The wires are somewhere in the 0.3-0.35mm diameter range, stranded, and uniquely jacketed – the black jacket appears to have a copper coating on the inside.  The wires are bound together with sticky black fabric tape and enter the display assembly on the righthand side of the bottom edge after about 150mm of free cable tail.  On the way it passes through the righthand hinge assembly.

A Macbook Pro Retina camera cable, cut off a panel.  The copper foil jacket can almost be seen to the left.

A Macbook Pro Retina camera cable, cut off a panel. The copper foil jacket can almost be seen in the stripped wire to the left.

The camera module sits behind the main display glass.  According to the iFixit teardown of the Retina display unit, the glass can’t be reliably removed without damaging it.  Therefore it would be best to figure out the pinout without having to inspect the camera board directly.  The ideal way to do this would be to pull the pinout directly from the schematic, but as I have not yet found a schematic for the A1398 Macbook Pro, we must devise another way.

One way or another, a mate connector for the camera would be desirable, to avoid having to cut the cable.  As I have been unable to find a source of these directly, I bought a Macbook Air camera mainboard sans lens.  I was very careful to inspect the myriad Macbook cameras available, because many of these – INCLUDING the A1398 camera – appear to use FFCs or other types of connectors, which will not mate with the motherboard side of the camera harness.  Here’s the board I bought:

Macbook Air camera mainboard, unknown source model

Macbook Air camera mainboard, unknown source model

The side advantage of having an additional camera board to fondle is the ability to probe and investigate how Apple designs their camera boards in general.  So what have we here?  First we will evaluate the silicon present on the board.  The most prevalent IC is U2, a Vimicro VC0336BSHB USB webcam interface ASIC.  From the product brief, we can see that this chip talks to a CMOS image sensor over LVDS, has a serial interface for a flash memory, has mic inputs and an AC’97 codec interface and speaks to the PC over USB.

Next to this is a SST SST39LF010 1Mbit flash memory, which is probably where configuration information such as the USB device descriptors are stored.  Next to this is a suspiciously placed chip with a pair of inductors underneath, which predictably is a dual buck regulator, a TI TPS62402DRC (marking BYH).  This IC provides a fixed (1.8 or 1.2V)/400mA and 3.3V/600mA.

That’s enough to work with.  The datasheet for the TPS62402 notes that pin 8 is GND and pin 3 is VIN.  Some probing reveals that in the input connector beginning at the left (marked with a silkscreen arrow), pin 1 is +5V and pin 6 is GND.  This is reaffirmed by the connection between GND and the metal body of the connector.  While we’re at it, EN1, EN2 and DEF_1 are pulled to +5V, meaning both supplies are permanently enabled, and the output voltages are 3.3V and 1.8V.

Conspicuously, two of the remaining pins (4 and 5) are run through a common mode ferrite bead.  This wouldn’t make sense for an i2c SCL/SDA line, since the two signals are not complements of one another and would be attenuated by the bead.  So we will guess that these are the USB connections, and the remaining two (2 and 3) must then be i2c.  Probing the i2c lines to random points on the board indicated that the lines run through the J3 board-to-board connector that connects the image sensor daughterboard.  We’ll remember that for later.

That was enough of this board.  Now, on to the real deal.  We know that the shield of the connector should be connected to GND.  If we are very lucky this will also be true on the opposite end of the cable – fortunately we are, and it is simple to confirm that pin 6 (as mated to the Air camera board) is GND as it is tied to the metal body of the connector.

Now for the 5V line.  Most power rails have some sort of capacitance to ground to smooth the line when brief current pulses are drawn from it.  In the Air board, measuring across the known power leads returns an input capacitance of 8.8uF.  Measuring any of the other leads to ground returns much smaller capacitances.  So this seems to be a reliable way to locate +5V.

We can guess that +5V should be pin 1.  But no!  Measuring the capacitance between this pin and the metal connector shell on the panel revealed a fairly insignificant capacitance.  In fact, when the rest of the pins are probed, only pin 3 exhibits a high (6.3uF) capacitance indicative of the +5V pin.  So immediately, the pinouts are different.

Knowing where the voltage rails are located is enough to work with.  If I was desperate I could use the same method for finding the rest of the pinout as I plan to use on the display connector – connect one pair at random, see if it enumerates, if not, reverse it, if it still doesn’t, swap for the other pair and repeat.  But I decided to cheat a bit and researched the Macbook schematics that I have to see if Apple had previously used a pinout with Ground, two skipped pins, then 5V.  I found the answer to this in the schematic for the Macbook Air A1370 LIO board – a pinout with GND as pin 1, 5V as pin 4, and two USB and two i2c pins:

A MSPaint rendering of the Macbook Air camera connector pinout.  I feel it unwise to post the actual schematic.  It's on the internet, go look for it if you're curious.

A MSPaint rendering of the Macbook Air camera connector pinout at the LIO board.  The actual schematic is available on the internet, go look for it if you’re curious.

This is very valuable information.  First of all, it notes that the pin numbering on this side of the board is different than the silkscreen on the Air board, placing GND as pin 1 instead of pin 6, etc.  Second, it makes the pinout (1-6) GND, USB_D+, USB_D-,+5V, I2C_SCL, I2C_SDA – this makes a lot of sense, as the pinout for normal USB connectors is +5/D-/D+/GND.

So without further ado, let’s see if this pinout is accurate.  I pulled the socket off of the Air board with my hot air station and wired it to a cut USB cable.

This wasn't much fun to solder.

This wasn’t much fun to solder.

Now, when connected to the USB port, gasp!  New devices!

Holy cow, it's alive!

Holy cow, it’s alive!

The camera enumerates as a USB Composite Device (USB\VID_05AC&PID_8510&REV_8025) with two sub-devices, both identified as “FaceTime HD Camera (Built-in)” (USB\VID_05AC&PID_8510&REV_8025&MI_00 and _02).  The _00 device installs automatically with generic Windows imaging device drivers; the _02 device claims no drivers could be found.  The solution is probably to dig through the BootCamp drivers and find one, but that’s a headache for another day.

The camera enumerates as these three devices.

The camera enumerates as these three devices.  Not sure why it finds drivers for one but not the other.  Nor, for that matter, why it’s two cameras…

But that doesn't matter because hooray, it works!

But despite the questions, hooray! It works!

So there you have it!  Camera operational, simple as that.  But what about the i2c connection?  What does it do?  The answer to that is in the schematic as well.  The netnames are “I2C_ALS_SCL” and “I2C_ALS_SDA”.  These are the communication bus for the Macbook Pro’s ambient light sensor.  I will leave the protocol hacking of the ALS for another post.

For those who wish to hack around with the camera and ALS, I have drawn up a simple breakout board with a camera connector, a mini-USB, and a 0.050″ header for the ALS.  I’ll post files for that board here as soon as I get a chance.  Remember though that I don’t have a source for the camera connector mate socket, so you’ll probably need to source a used camera board with the appropriate connector and harvest it.  The price is not bad; I paid about $6 for mine.

For a sense of scale, remember that that's a miniUSB...

For a sense of scale, remember that that’s a miniUSB…

That’s enough for this installment.  Next time, hopefully I’ll be showing off the working panel.

<< Previous post in this seriesNext post in this series >>

Hacking the iPad 3 LCD, A Simpler Approach Part 4: Kit Costs

A lot of people have been asking about how much these boards cost, so it seems worthwhile to post a little something to clear this up.

I’m not looking to make a huge profit of any of this.  Actually it just makes me happy that anyone is interested at all in what I’m doing.  So rather than keep my costs under wraps and provide you with a blackbox number, here is the actual amount that it costs me to build one of these boards, by component (in USD):

Component Vendor Vendor PN Cost ea Qty Ext Cost
PCB, MM PCB10002 REV B, Simple iPad Breakout OSH Park PCB10002 REV B 3.17 1 3.17
Connector, DisplayPort, SMD, Molex 0472720001 Digikey WM19271CT-ND 5.30 1 5.30
Connector, FFC, 51 Pos, 0.3mm Pitch, Molex 5022505191 Mouser 538-502250-5191 5.56 1 5.56
Capacitor, Alum Elec, 100uF, 10V, TH, Panasonic EEUFR1A101 Digikey P14373-ND 0.33 1 0.33
Diode, Schottky, dual common cathode, 25V, 1A, TO-261, NXP BAT120C,115 Digikey 568-6921-1-ND 0.77 1 0.77
LED, Green, SMD 0805, OSRAM LG R971-KN-1 Digikey 475-1410-1-ND 0.08 1 0.08
Resistor, 100 ohms, 1%, 1/10W, 0603, Yageo RC0603FR-07100RL Digikey 311-100HRCT-ND 0.10 1 0.10
Resistor, 100 ohms, 1%, 1/16W, 0402, Stackpole RMCF0402FT100R Digikey RMCF0402FT100RCT-ND 0.025 12 0.30
Resistor, 0 ohms, 0603, Yageo RC0603JR-070RL Digikey 311-0.0GRTR-ND 0.10 2 0.20
Total 15.81

Now, not all of these parts are used in the same buildup.  The diode and the 0 ohm resistors aren’t installed at the same time; the 0402 resistors aren’t installed at all if the board is to be used for a projector build as they’d be unnecessary, etc.  But I will kit all the boards based on this set of parts anyway, so this is the base cost for one unit.

There are additional ancillary costs not rolled into the above BOM.  Packaging costs (antistatic bag, padded envelope), pre-soldered wires (if desired), assembly materials (solder paste, flux remover, etc), assemble-it-yourself materials (stencil, if desired).  And you’ll note that I have not touched labor yet – if you want me to build up the boards, I will need to charge a nominal assembly fee.  I won’t charge you a fortune, but it would be foolish to work for free.

I have quotes out at stencil manufacturers and will query the usual shipping suspects for pricing this week ([EDIT 2013.08.08] Shipping to the continental US is typically $3 for one or two units, shipping international is averaging about $7).  The cost is $20 for a kit of parts, $30-$35 for an assembled board (pending stencil quote [EDIT 2013.07.09] None of the inexpensive stencil fabricators can do the aperture/web sizes on this board, so I’d need a professional stainless-steel stencil – which I won’t go for unless I get enough people interested in boards to offset the cost), plus shipping to your location.  Note that this isn’t a start-to-finish kit – you’ll still need to provide a stable 3.3V source (assuming your DisplayPort cable doesn’t do so), and a source of 19-20V if you want to drive the backlight.  This board was designed for the DIY projector crowd to be as cheap and simple as possible, so please be aware of its limitations.

I hope the projected cost isn’t more than expected.  Labor is going to be the thing that really drives the price – right now it takes me an hour or so to build a board since I’m applying paste by hand.  I hope that I can get a stencil done for a reasonable price to reduce that effort.  We’ll see.  Nope.

More on this later.  If you’re interested, please drop me a comment or an email so I can gauge interest.  If a hundred people want one, a $180 professional stencil suddenly isn’t quite so big a deal (this board is too complex for the most inexpensive prototype laser services).  Plus then quantity discounts start to apply on components and the BOM cost drops.  Which means cheaper boards for all!  Yay!

<< Previous post in this series
